About this machine
This used Nortan PRISMA 30 S is listed as a wine capsuling machine for wine bottling operations. Manufactured in 2003, it is suitable for wineries and beverage producers looking for second-hand equipment for glass bottle production, filling, closure, labelling, packaging or end-of-line handling.
Main specifications: year 2003, speed 2,500 BPH, clockwise direction and condition As Is. Category: Capsuling Machines / Champagne.
The machine can be evaluated as a standalone unit or as part of a complete used wine bottling line together with fillers, corkers, cappers, capsule machines, labellers, case packers, palletizers and conveyors, depending on the final project requirements.
Current location: Europe. Availability/status: available. Use machine code BC 357 when requesting additional photos, technical data, inspection options, dismantling, loading, transport or installation support.
Original technical notes:
BC 357 | CAPSULING MACHINE NORTAN
Year: 2003
Speed: 2.500 Bph
Model: PRISMA 30 S
Direction: Clockwise

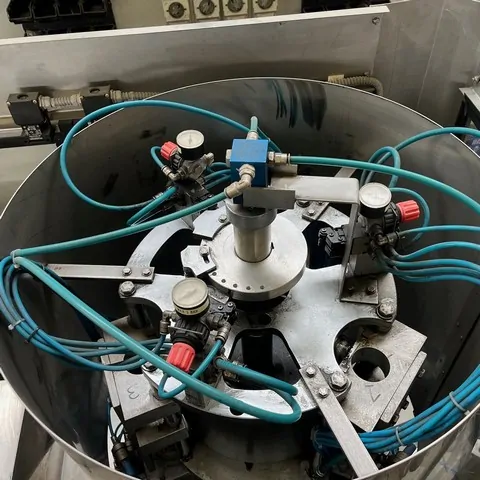

Number of heads: 3
Type of capsules: champagne
Measure min. and max: from h. 80mm to h. 120 mm
Distribution Cups included: mod. 80-90-120
Plateau capsules distribution
Bottle formats
0.75 L Ø 96×297 mm
1.5 L Ø 122×360 mm
Safety protections
